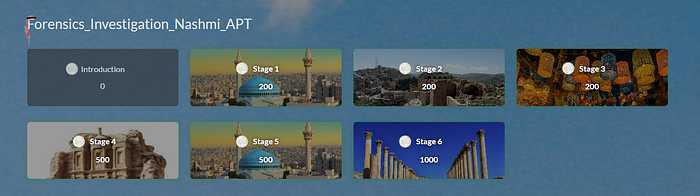

Cyber Warriors CTF — Forensics: Investigation Nashmi APT

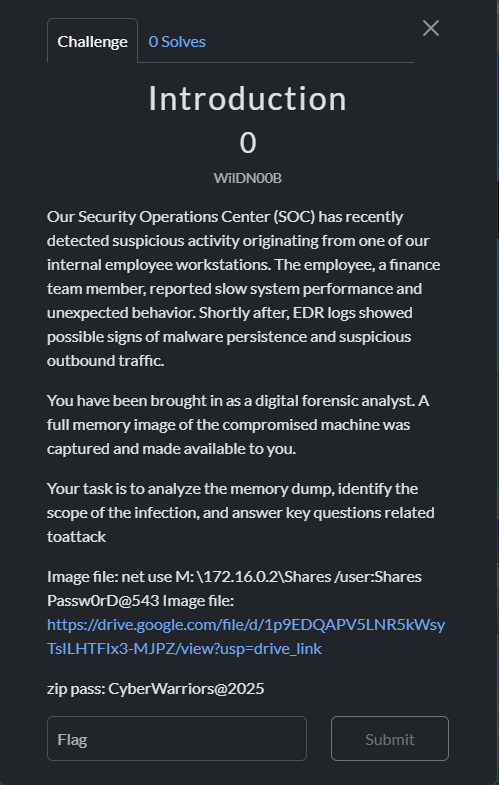

Introduction

#

Our Security Operations Center (SOC) detected suspicious activity originating from an internal employee workstation. The employee — a finance team member — reported slow system performance and unexpected behavior. Shortly after, EDR logs showed signs of malware persistence and suspicious outbound traffic.

Mission: Analyze a full memory image of the compromised machine, identify the scope of the infection, and answer key investigation questions.

Image file: net use M: \\172.16.0.2\Shares /user:Shares Passw0rD@543

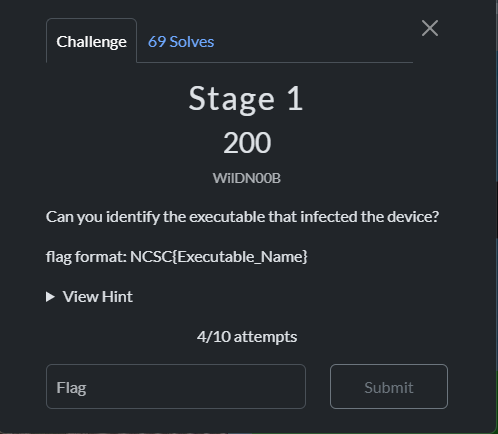

Stage 1 — Identify the Executable That Infected the Device

#

Flag format: NCSC{Executable_Name}

Start by listing processes running at capture time using pslist:

python3 vol.py -f Nashme-APT.raw windows.pslist

Suspicious finding: Zoom was spawned by cmd.exe. Legitimate Zoom runs under explorer.exe or ZoomInstaller.exe — not CMD.

Check the execution path

#

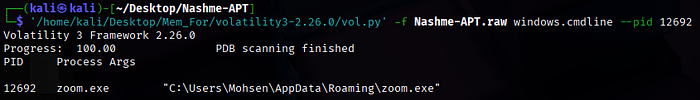

python3 vol.py -f Nashme-APT.raw windows.cmdline --pid 12692

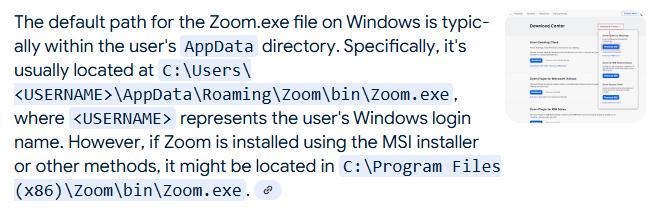

The path is abnormal. The legitimate Zoom client lives at:

C:\Users\<User>\AppData\Roaming\Zoom\bin\Zoom.exe

Dump and analyse the binary

#

Get the virtual address via filescan:

python3 vol.py -f Nashme-APT.raw windows.filescan | grep "zoom.exe"

Dump the file:

sudo python3 vol.py -f Nashme-APT.raw -o sus_bin windows.dumpfiles

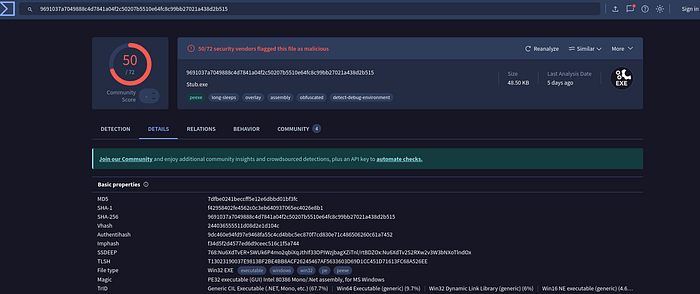

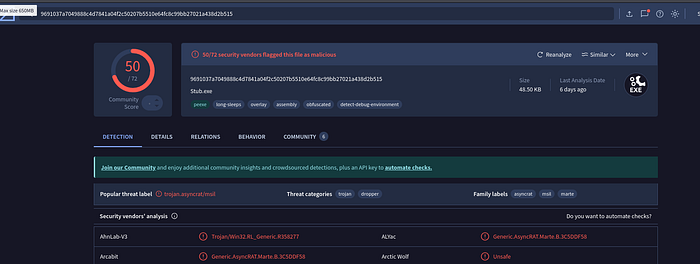

Upload to VirusTotal → Confirmed: AsyncRAT.

But did CMD really execute Zoom directly? In forensics, you need the full story — especially the initial access vector. Check handles for the RAT to find what it’s touching:

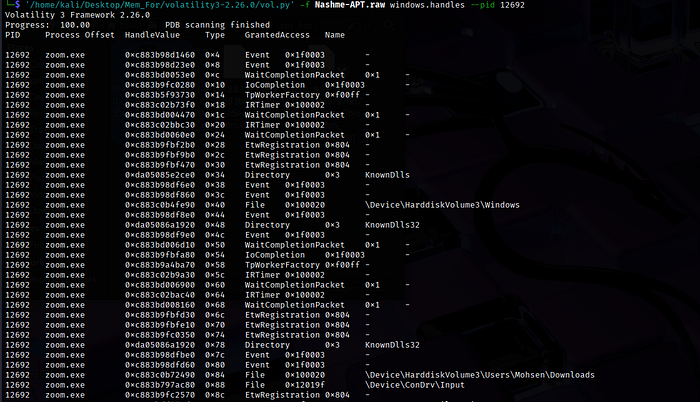

python3 vol.py -f Nashme-APT.raw windows.handles --pid 12692

The RAT has a handle open to the user’s Downloads directory. Scan that path:

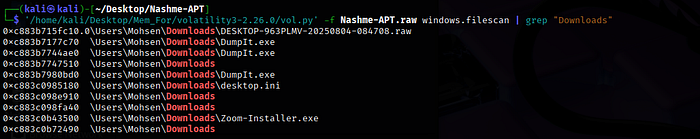

python3 vol.py -f Nashme-APT.raw windows.filescan | grep "Downloads"

Finding: Zoom-Installer.exe in Downloads. This is the dropper. Dump it and upload to VirusTotal → Confirmed malicious.

Flag 1: NCSC{Zoom-Installer.exe}

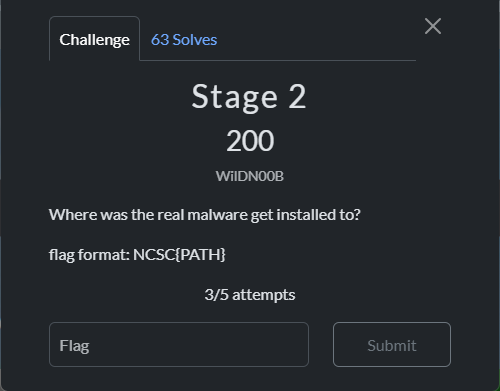

Stage 2 — Path of the Infection

#

The RAT dropped itself to:

C:\Users\Mohsen\AppData\Roaming\Zoom.exe

Flag 2: NCSC{C:\Users\Mohsen\AppData\Roaming\Zoom.exe}

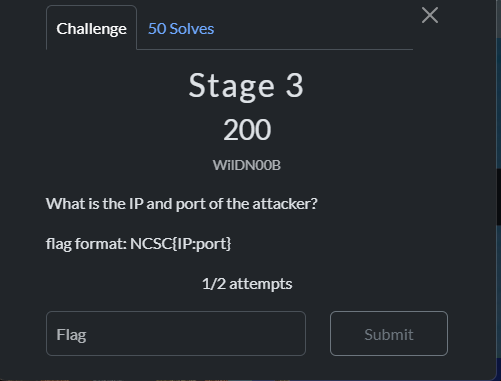

Stage 3 — Network Connection

#

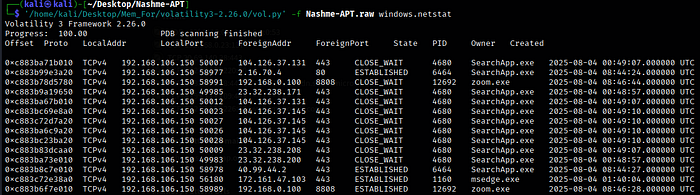

python3 vol.py -f Nashme-APT.raw windows.netstat

zoom.exe has an established connection to the C2 server.

Flag 3: NCSC{192.168.0.100:8808}

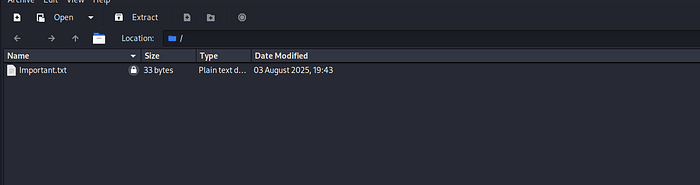

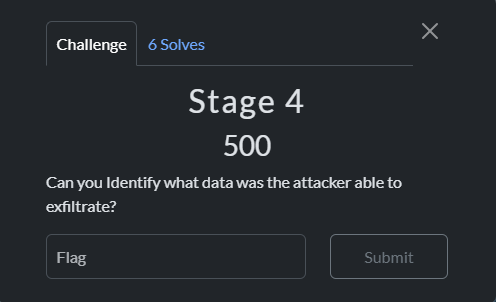

Stage 4 — RAR File on Desktop

#

While scanning the filesystem I noticed:

Users\Mohsen\Desktop\Important.rar

Dump the file and crack the password:

rar2john Important.rar > hash.txt
hashcat -m 13000 hash.txt /usr/share/wordlists/rockyou.txt

Password: Rat9030

Flag 4: NCSC{R4T5_a43_4MaZ1nG_Cr34TuR3s!}

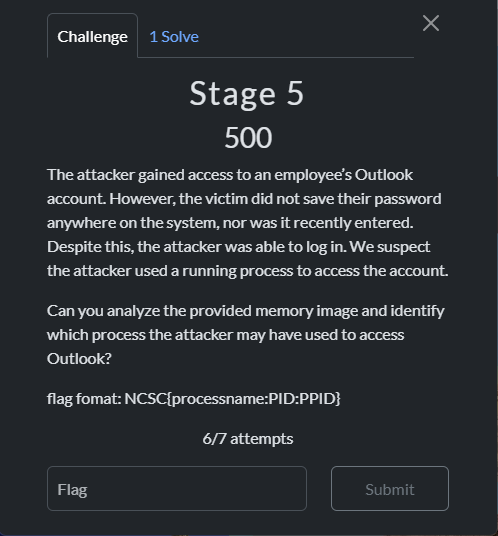

Stage 5 — Process Injection: olk.exe & host.exe

#

Context

#

olk.exe is the executable for the new Outlook app on Windows. The victim had no saved credentials on the system — so the attacker couldn’t steal a stored password. Instead, they hijacked an already authenticated session running inside olk.exe.

Classic technique:

• Inject into a running browser/mail client process
• Steal cookies or session tokens from memory
• No password needed — the session is already live

Investigation

#

Step 1: Confirm olk.exe was running:

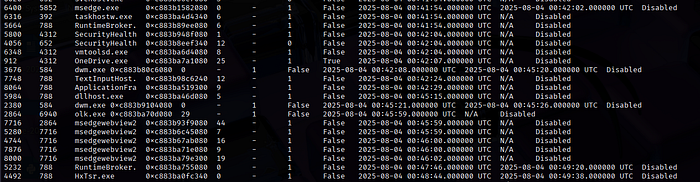

python3 vol.py -f Nashme-APT.raw windows.pslist

PID: 2864   PPID: 6940   olk.exe

Step 2: Check the parent process (PPID 6940):

No process found. The parent had already exited before the memory capture — classic evasion.

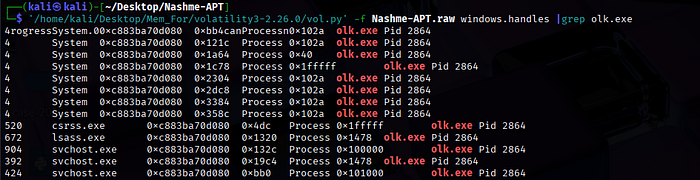

Step 3: Check handles on olk.exe:

python3 vol.py -f Nashme-APT.raw windows.handles | grep olk.exe

Everything seemed legitimate. Hit a wall — pivoted to MemProcFS:

MemProcFS.exe -device D:\Nashme-APT.raw -forensic 1

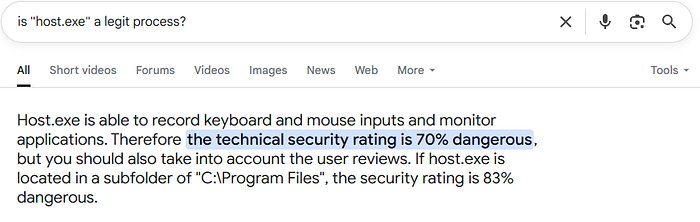

Reviewing the process list in MemProcFS, I spotted host.exe — initially overlooked. After research, host.exe is a known suspicious process. Checking its handles:

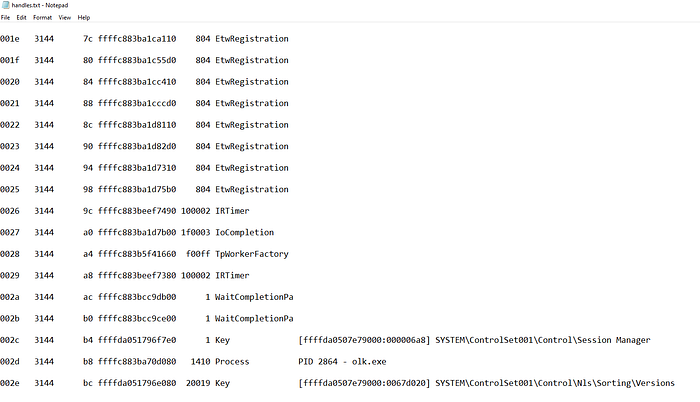

M:\name\host.exe-3144\handles\handles.txt

Result: host.exe (PID 3144) was reading memory from olk.exe (handle 8528).

Flag 5: NCSC{host.exe:3144:8528}

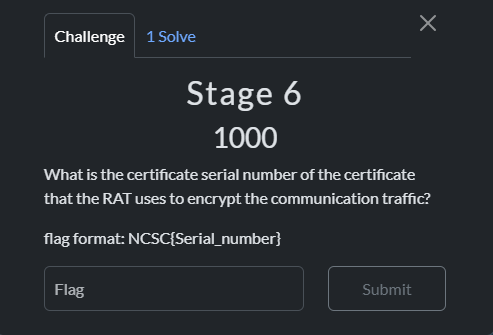

Stage 6 — AsyncRAT Reverse Engineering

#

Binary identification

#

file zoom.exe
# zoom.exe: PE32 executable for MS Windows (GUI), Intel i386 Mono/.Net assembly

It’s a .NET assembly — use dnSpy to decompile.

Warning: This is real malware. Do not debug it on your main system.

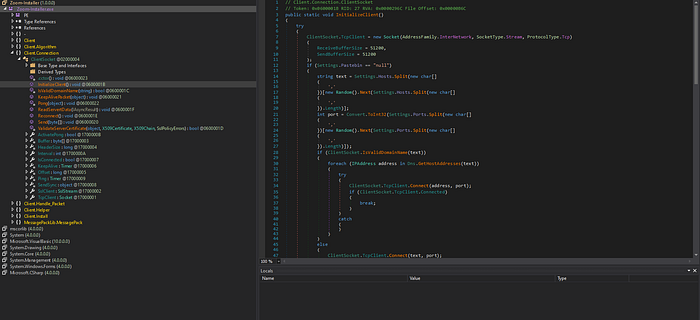

InitializeClient() — C2 Connection Logic

#

This function:

• Creates a TCP socket with 50KB buffers
• Randomly selects a host/port from the config (or fetches from Pastebin as a fallback C2)
• Wraps the connection in SSL/TLS with custom certificate validation
• Sends initial client info to the server
• Sets keepalive timers and begins asynchronous data read

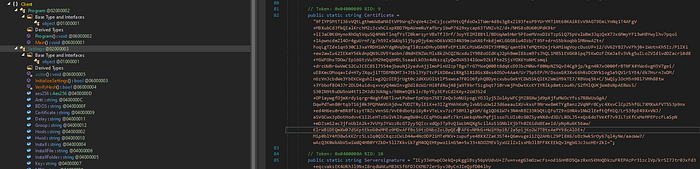

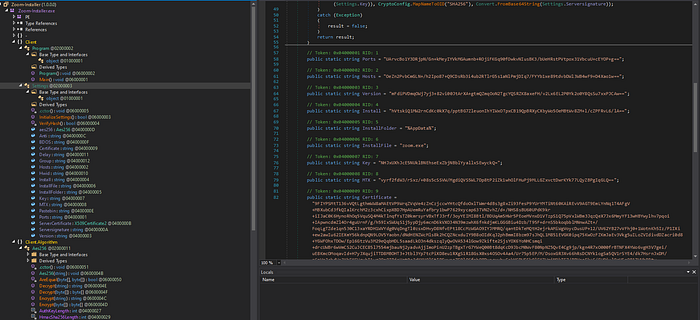

InitializeSettings() — AES-256 Config Decryption

#

Key observations:

• All config fields are AES-256 encrypted, stored as base64 strings
• VerifyHash() validates the decrypted key against the server’s RSA signature
• InstallFolder = "%AppData%", InstallFile = "zoom.exe" — confirms persistence location
• AES key (base64): NHJxUXhJcE5NUklBNEhseExZbjNBblYyallxSEwyckQ=

Decrypting the Certificate

#

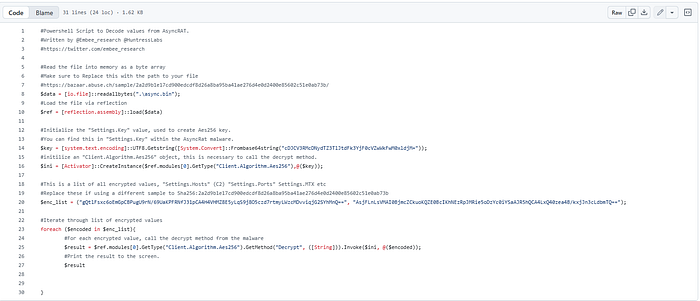

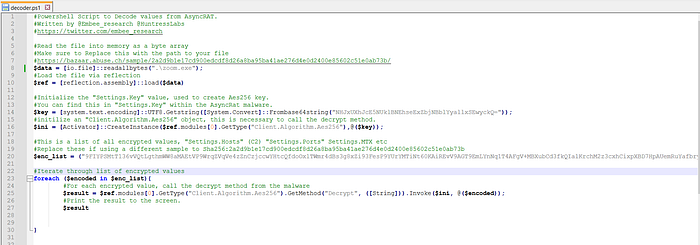

Used the AsyncRAT config decoder — modified by teammate Omar Hijah:

1. Set $key = NHJxUXhJcE5NUklBNEhseExZbjNBblYyallxSEwyckQ=
2. Set $enc_list = the encrypted Certificate base64 string from the Settings class

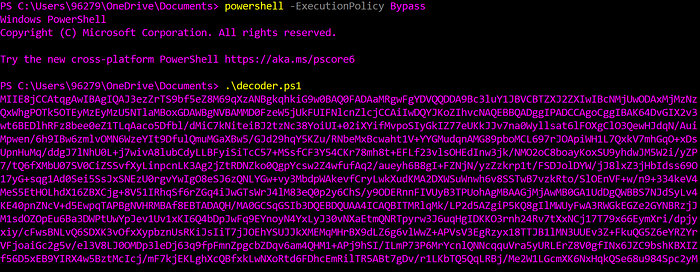

powershell -ExecutionPolicy Bypass

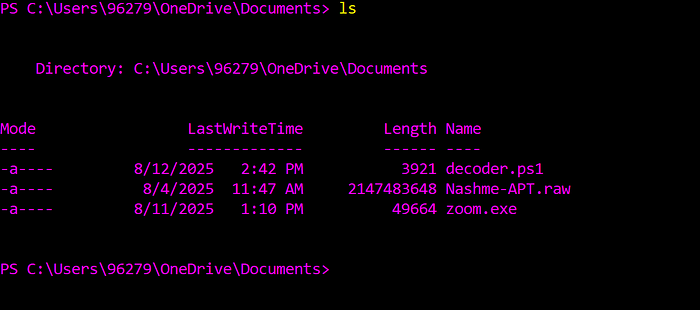

.\decoder.ps1

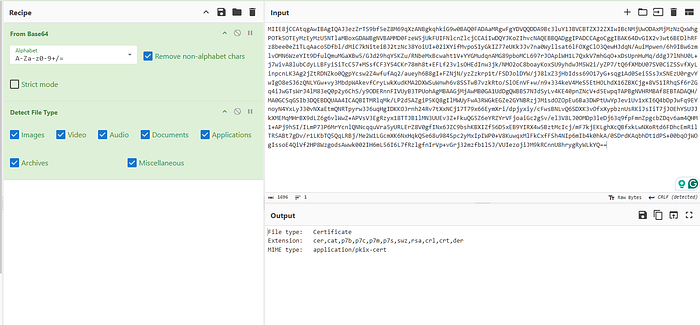

Decrypted output → base64 → CyberChef → decoded certificate:

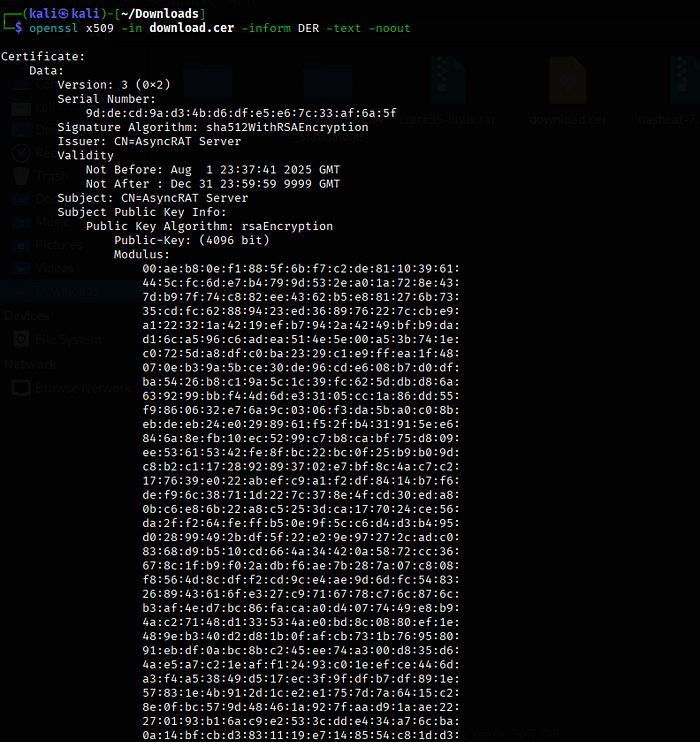

Extract certificate details:

openssl x509 -in download.cer -inform DER -text -noout

Certificate subject: AsyncRAT Server

Flag 6 (First Blood): NSCS{9ddecd9ad34bd6dfe5e67c33af6a5f}

Attack Chain Summary

#

Zoom-Installer.exe (dropper)
    └── drops zoom.exe (AsyncRAT) → C:\Users\Mohsen\AppData\Roaming\Zoom.exe
         ├── Spawned by cmd.exe from suspicious path
         ├── C2: 192.168.0.100:8808 (SSL/TLS, AES-256 encrypted config)
         ├── Downloads handle → confirms dropper origin
         └── host.exe (PID 3144) → injects into olk.exe (PID 2864, handle 8528)
              └── Session hijack of authenticated Outlook process

We were the only team that solved the entire chain.
